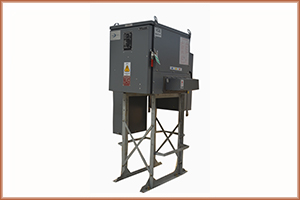

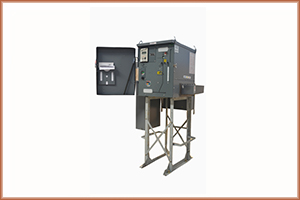

Compact Sub-Station (CSS) is a prefabricated, factory-assembled electrical unit that integrates the essential components of a traditional substation—primarily the power transformer, high-voltage (HV) switchgear, and low-voltage (LV) switchgear—into a single, space-saving structure. Designed for rapid deployment, these units are built as complete packages, often housed within robust, weatherproof enclosures suitable for outdoor installation, and then delivered ready for connection on-site. The key advantage lies in its significantly reduced physical footprint compared to site-built substations, along with faster installation times, minimized on-site civil work, and improved safety through its enclosed design. Consequently, Compact Substations are widely utilized in urban areas with space constraints, industrial complexes, commercial buildings, remote locations, and applications requiring efficient and reliable voltage transformation and power distribution.
Components of CSS
Transformer Unit : Contains the power transformer (often oil-immersed, but dry-type can also be used), associated Buchholz relays, temperature sensors, conservator tank, and explosion relief devices (for oil transformers). This unit handles the voltage transformation (e.g., from high voltage to medium voltage).

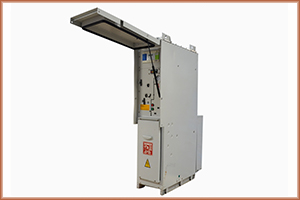

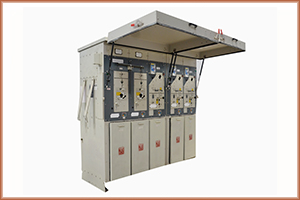

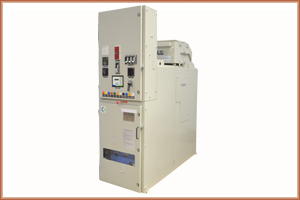

HV (High Voltage) Switchgear Unit :
Isolators (disconnect switches)
Current Transformers (CT)
Voltage Transformers (VT/PT)
High Voltage Circuit Breaker (often oil or SF6 type for outdoor CS)
Earthing switches
Protection relays

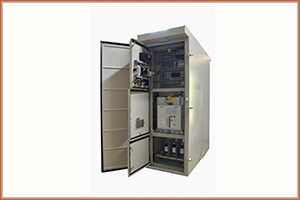

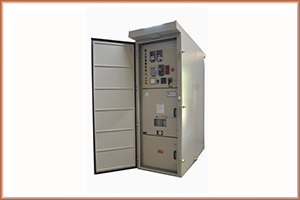

LV (Low Voltage) Switchgear Unit :
LV circuit breakers or switch-disconnectors
Busbars
Metering devices
Control panels
Advantages of Compact Sub-Stations in Vadodara, Surat, Vapi, Valsad :
Space Saving : Significantly reduces the land area required compared to traditional substations.
Faster Installation : Factory assembly drastically cuts down on-site construction time.
Reduced On-Site Work : Minimizes civil work, welding, and complex wiring on location.
Improved Safety : Enclosed design reduces exposure risks, and factory testing ensures proper component integration.
Aesthetics : Can be designed to be less obtrusive than open substations.
Reliability : Rigorous factory testing ensures proper operation before shipment.
Modularity : Easier to transport and install in remote or difficult-to-access locations.
Applications of CSS in Vadodara, Surat, Vapi, Valsad :
Urban areas with limited space ( city centers, residential complexes).
Industrial and commercial facilities.
Airport terminals and runways.
Railway electrification systems.
Remote locations or offshore platforms where transport and installation logistics are challenging.
Temporary power supply requirements.
