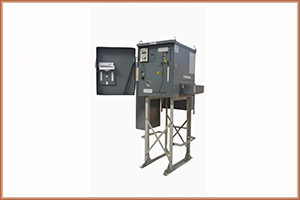

Vacuum Circuit Breaker (VCB) is an electrical switching device designed to interrupt current flow under both normal load and fault conditions, utilizing a vacuum as its arc-quenching medium. When the breaker's contacts separate, the resulting arc is quickly extinguished due to the high dielectric strength and rapid deionization properties of the vacuum environment within a sealed chamber called a vacuum interrupter. This technology offers significant advantages, including a compact and lightweight design, minimal maintenance requirements due to the sealed, robust construction, and excellent performance in interrupting fault currents. Consequently, VCBs are widely employed in medium voltage (typically up to 36 kV) switchgear applications within industrial plants, commercial buildings, power generation facilities, and distribution networks for reliable protection and control of electrical power systems.
Components of VCB
Operating Mechanism : Provides the force and motion to close and open the contacts (e.g., spring-charged, solenoid operated).
Current Carrying Conductors : Connect the VI to the incoming and outgoing lines or busbars.
Support Structures & Insulators: Provide mechanical support and electrical insulation.
Enclosure : Often housed in a metal enclosure, sometimes with an arc shield.
Advantages of Vacuum Circuit Breaker in Vadodara, Surat, Vapi, Valsad :
Excellent Arc Quenching : Very efficient interruption of fault currents.
High Dielectric Strength : Vacuum provides a very strong insulating medium, allowing for quick recovery after arc extinction.
Compact Size & Lightweight : Generally smaller and lighter than equivalent air or oil circuit breakers.
Longer Electrical Life : Fewer restrikes during interruption mean longer operational life before replacement is needed.
Minimal Maintenance : The sealed vacuum interrupter requires virtually no maintenance over its lifespan.
Environmentally Friendly : No oil (fire risk) or SF6 gas (greenhouse gas) to leak.
Fast Operation : Can achieve rapid opening and closing times.
Suitable for High Voltage: Effectively used in medium (up to ~36 kV) and high voltage applications.
Applications of VCB in Vadodara, Surat, Vapi, Valsad :
Medium Voltage (MV) switchgear (up to about 36 kV).
Industrial plants and factories.
Commercial buildings with large power demands.
Power generation plants (e.g., generator circuit breakers in some designs).
Renewable energy installations.
Traction systems (railways).
Distribution substations.
